The Silver Extraction Process
The Silver Extraction Process
The ore used to extract silver was not a silver ore but Lead Sulphide (formula PbS), known as Galena or Galenite (named by the Roman Pliny) which contains 87% lead. The local variety of Galenite is silver-bearing and is known as Argentiferous Galenite (formula (Pb.Ag)S ) and the lead obtained from this ore contains just a small percentage of silver - from 0.8% up to 5% (other sources say Laurion galena contains typically only 0.13 to 0.30% Ag).

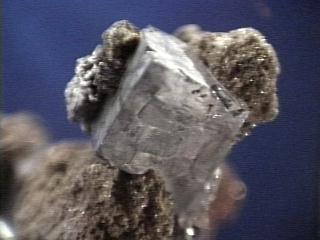

Galena crystals
The ore as mined was not pure as it was mostly encased in rock, combined with earth, and also contained traces of iron ore and other minerals. Firstly it had to be pounded into small fragments on stone tables with rock hammers, then ground to a fine powder of 1-mm grain size in a stone mill (very hard work!). Then it had to be washed in a "washery" to remove as many of the impurities as possible. The washed ore was then dried and formed into bricks.
Next, the bricks of washed ore were heated in a furnace where the lead/silver mixture was released from it's sulphide and separated from iron oxide impurities and run-off into "pigs" or blocks.
The pigs of lead were now placed in a high temperature (950 degC) 'Cupellation' furnace. The metal was placed in a shallow open basin or ceramic bowl (the cupel or cup) in a furnace and a strong blast of air blown across the surface of the molten metal. The lead oxidized to form PbO (litharge, from Greek for the "spume of silver"), the relatively pure silver remained as metal. The lead oxide was skimmed off the surface of the hot mixture or absorbed into walls of the cupel (made of a special material - sometimes bone ash). The silver that remained at the bottom of the cupel was run-off and solidified into blocks.
Since lead was also valuable, it was recovered by placing the litharge (lead oxide) remaining from the cupellation process into yet a third furnace and heated to 250 degC and air was blown through it. The lead was run-off and formed into rods.
Since lead is a cumulative poison, many slaves must have died from its effects; not to mention from the toxic sulphur dioxide fumes from the original lead sulphide processing furnaces - & the arsenic contained in small quantities in the lead.
RJH
Relief from
the Lavrion Archaeological Museum showing all the stages
of labour required to obtain the silver - from mining through to the furnace.
Enlarged views are shown below.
Chipping
away to expose the ore veins in the silver mine
Removing the ore & carrying it out of the mine
Carrying the ore to the horse-drawn cart
Transporting
the
ore to the pounding area
Crushing
the ore by pounding with a special hammer
Grinding
the ore to a fine powder with a stone mill
Further grinding of the ore by hand
Drawing water from the cistern
Removing the impurities at the ore washery.
Note the slave pouring recycled water into the main tank
and another removing sediment from the settling tank.

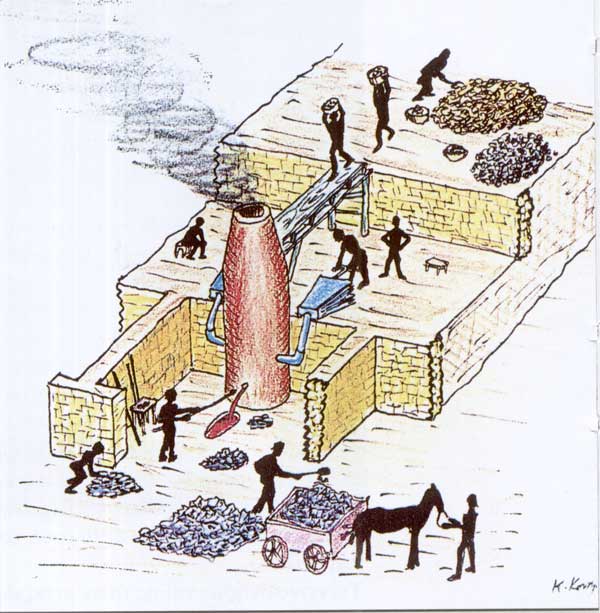

Creating silver-bearing lead pigs by processing in a furnace
The
bricks of washed Galena ore are being heated in a furnace
to extract the lead containing a small proportion of silver.
Noxious sulphur fumes are being emitted from the chimney.

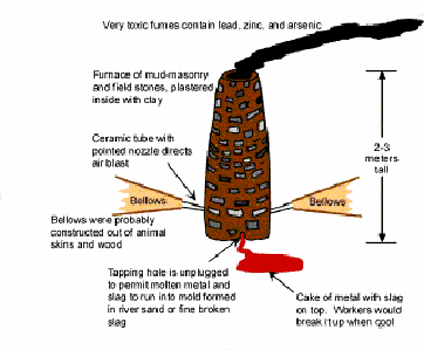

Sketch of smelter as we suppose it looked.
Acknowledgements:
The Lavrio Museum (panels)
The Lavrio Museum publication ISBN 960-214-219-7 (diagram)
